Hydraulic Torquing Pumps

Electric and pneumatic hydraulic pumps designed to power hydraulic torque wrenches for continuous industrial bolting operations.

2 products in this category

HPL-101 Electric Torquing Pump

Electric Pump for Hydraulic Torque Wrenches

The HPL-101 is a 1.5 kW electric hydraulic torquing pump rated at 700 Bar (10,000 PSI) maximum pressure. Its two-stage pump delivers 9.7 LPM at 70 Bar and 0.97 LPM at 700 Bar, powered from a 6-litre reservoir. A built-in heat exchanger with automatic shutdown at 80 degrees C and PLC-controlled 3-minute idle auto-shutoff protect the system during continuous industrial operation.

View Details

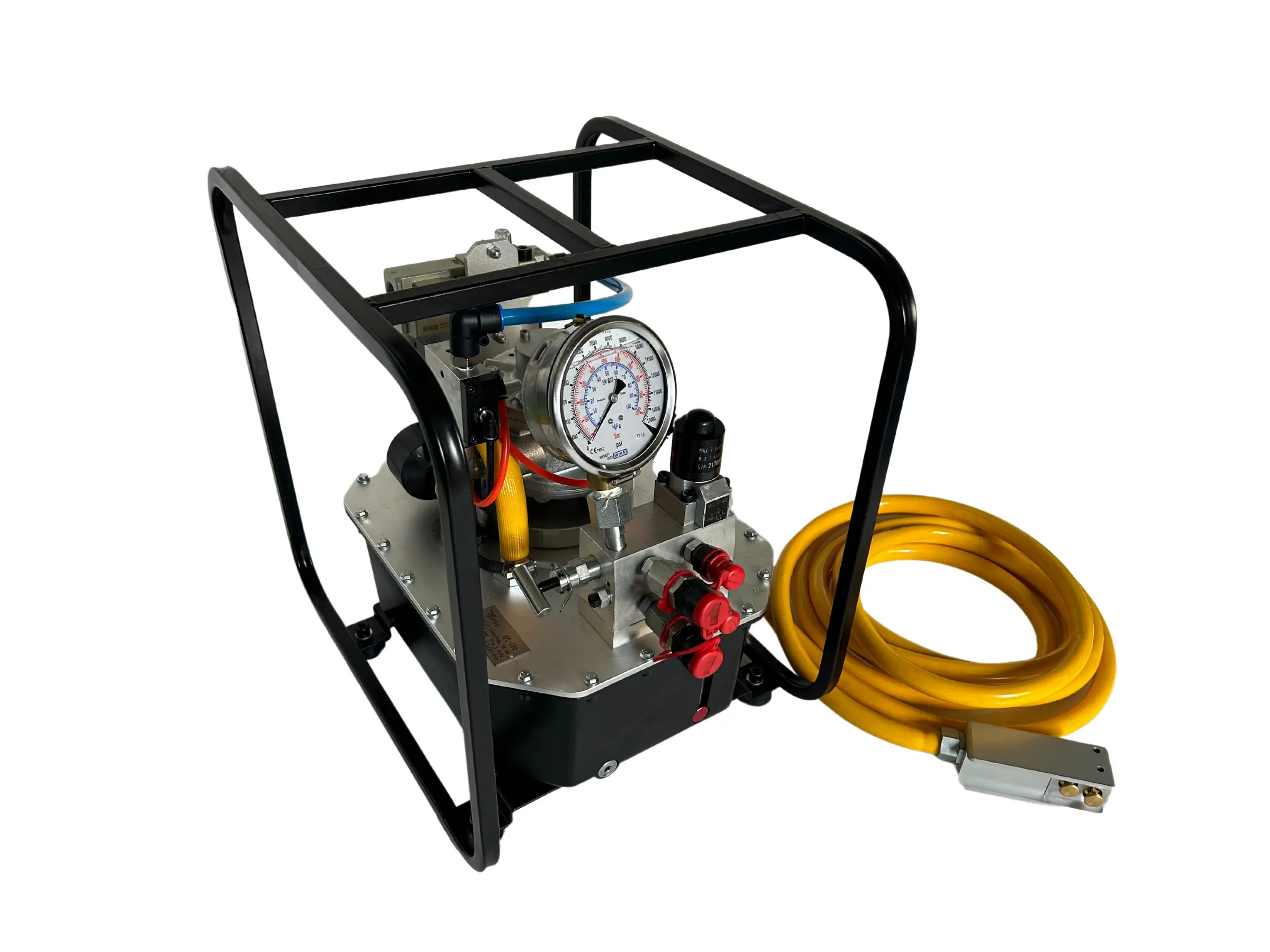

APL-100 Air Operated Torquing Pump

Pneumatic Pump for Hydraulic Torque Wrenches

The APL-100 is a two-stage air operated hydraulic torquing pump powered by a 4HP rotary air vane motor at 3,000 RPM. It delivers 7.9 LPM at 70 Bar and 0.9 LPM at 700 Bar (55 cubic inches/minute at 10,000 PSI) from an 8.5-litre reservoir. Weighing 36 kg, it includes a filter-lubricator assembly, air muffler, adjustable relief valve, and 10-inch remote-controlled pendant for safe operation in hazardous or explosive atmospheres.

View Details

Need Help Choosing?

Our team can help you find the right Torso Tools hydraulic torquing pumps for your application.

Contact Our Experts Back to All Categories
